Nomad Bridge incident analysis

On August 1, 2022 Nomad Bridge suffered the fourth largest DeFi hack with more than $186M stolen in just a few hours. As we have described in our recent blog post, from the $540M Ronin Bridge compromise in March to the $250M Wormhole bridge hack in February of 2022, it is not a coincidence that DeFi bridges constitute some of the most costly incidents in our industry.

What makes the Nomad Bridge compromise unique is the simplicity of the exploit and the sheer number of individuals taking advantage of it to empty all stored assets piece by piece.

Vulnerability Analysis

Nomad is a bridging protocol supporting Ethereum, Moonbeam, and other chains. Nomad’s bridging protocol is built using both on-chain and off-chain components. On-chain smart contracts are used to collect and distribute bridged funds while off-chain agents relay and verify messages between different blockchains. Each blockchain deploys a Replica contract which validates and stores messages in a Merkle tree structure. Messages can be validated by either providing proof with the proveAndProcess() call or for already verified messages they can be simply submitted with the process() call. Verified messages are forwarded to a Bridge handler (e.g. ERC20 Router) which can distribute bridged assets.

On April 21, 2022 Nomad deployed a Replica proxy contract to handle processing and validation of users’ claims of bridged assets. This proxy would allow Nomad to easily change implementation logic while retaining storage across upgrades. As part of the proxy deployment, Nomad set initial contract parameters defined in the snippet below:

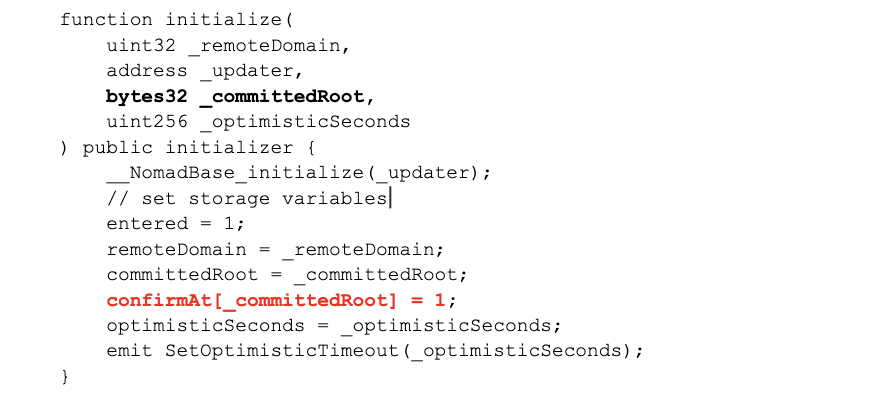

Nomad code snippet - initialize function

Notice the highlighted confirmAt map assignment which sets an initial entry for the trusted _committedRoot to the value of 1. The variable _committedRoot is provided as an initialization parameter by Nomad’s contract deployer. Let’s see what it was set to during the initialization:

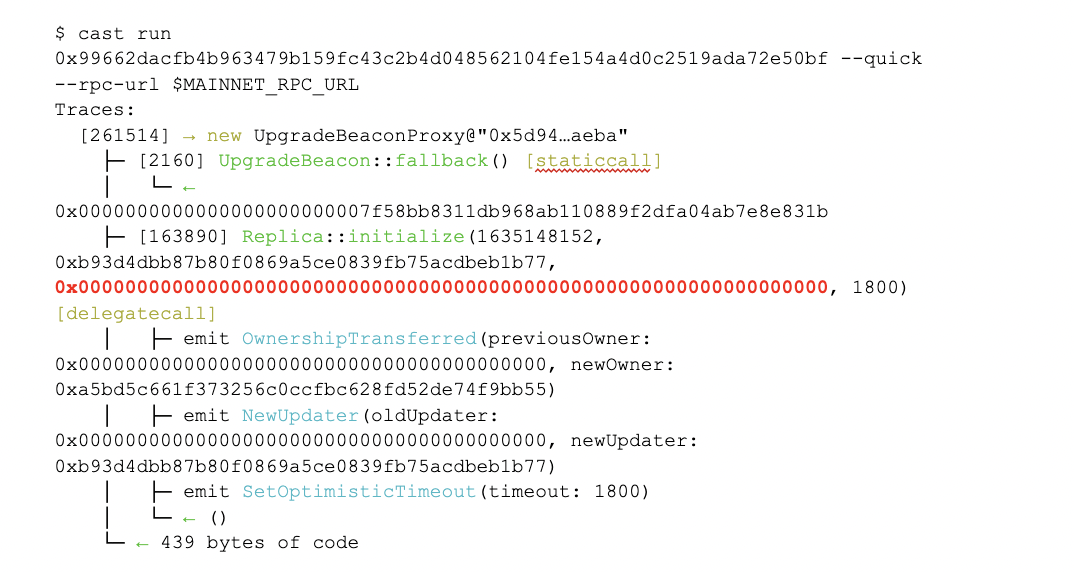

"cast run" code snippet

Interestingly the initialization parameter _committedRoot was set to 0. As a result the confirmAt map now has a value of 1 for a 0 entry that from April to this day:

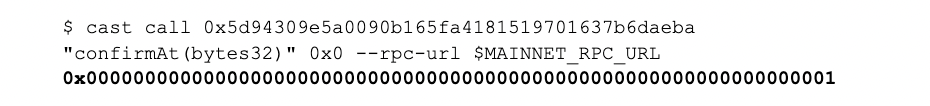

"cast call" screenshot

On June 21, 2022, Nomad performed a series of upgrades to its bridging infrastructure including the Replica implementation. One of the changes included updates to the message verification logic in the process() function:

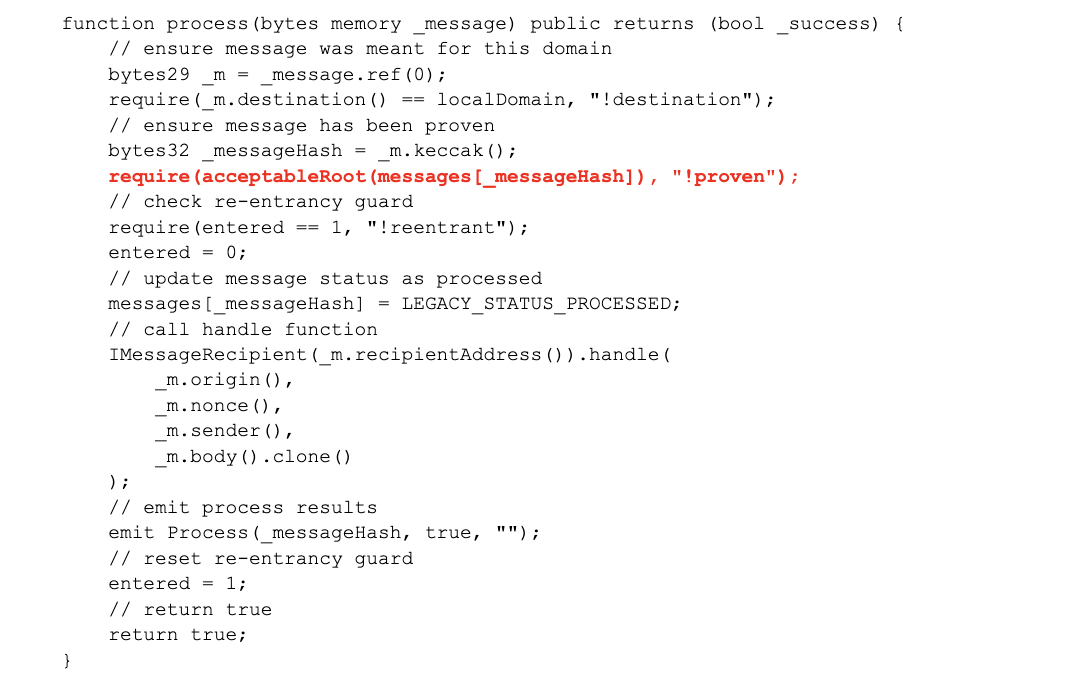

Update of process() function

The message verification flow now includes a call to the acceptableRoot() method which in turn references confirmAt map we mentioned above:

The message verification flow now includes a call to the acceptableRoot() method which in turn references confirmAt map

The vulnerability appears in a scenario when fraudulent messages, not present in the trusted messages[] map, are sent directly to the process() method. In this scenario messages[_messageHash] returns a default null value for non-existent entries so the acceptableRoot() method is called as follows:

require acceptableRoot(0)

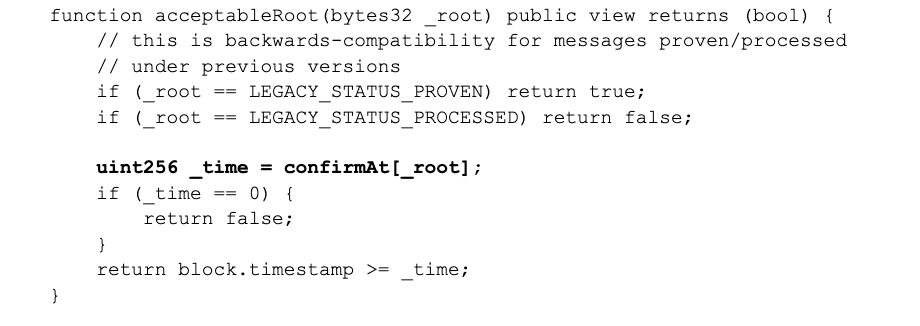

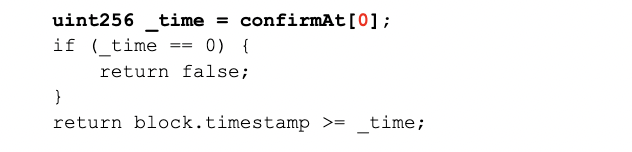

In turn, the acceptableRoot() method will perform a lookup against confirmAt[] map with a null value as follows:

acceptableRoot() method will perform a lookup against confirmAt[] map with a null value as follows

As we mentioned in the beginning of this section, confirmAt[] map has a null entry defined resulting in acceptableRoot() returning True and authorizing fraudulent messages.

Exploit Analysis

The exploit takes advantage of the above vulnerability by crafting a message which tricks Nomad bridge into sending stored tokens without proper authorization. Below is a sample process() payload in a transaction submitted by 0xb5c5…590e:

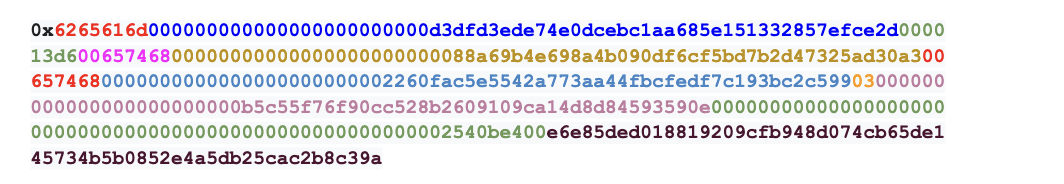

a sample process() payload in a transaction submitted by 0xb5c5…590e

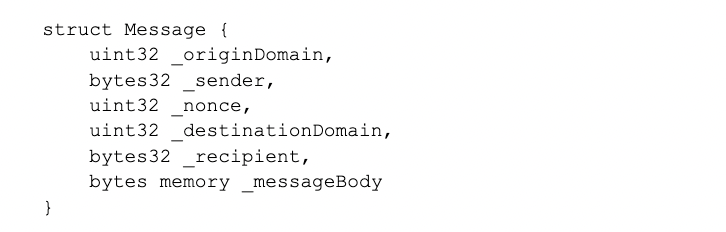

The Replica message has the following structure:

Replica message structure

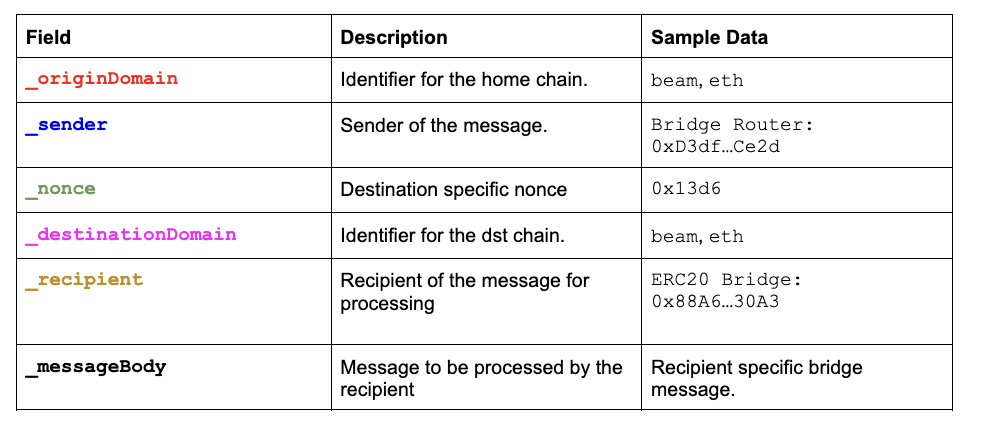

Table of Replica message fields

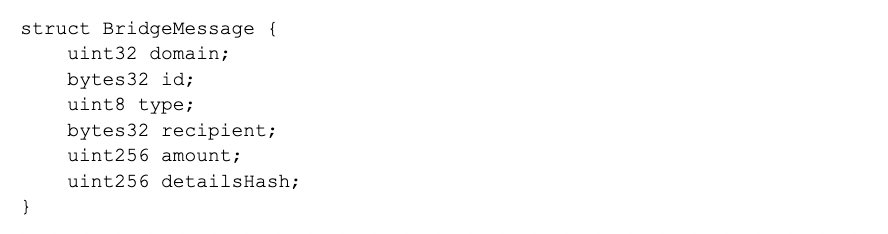

The recipient specific _messageBody contains transaction data to be processed by the _recipient. Nomad recipients accept several transaction and message types, but we will focus on the transfer type:

The recipient specific _messageBody contains transaction data to be processed by the _recipient. Nomad recipients accept several transaction and message types, but we will focus on the transfer type

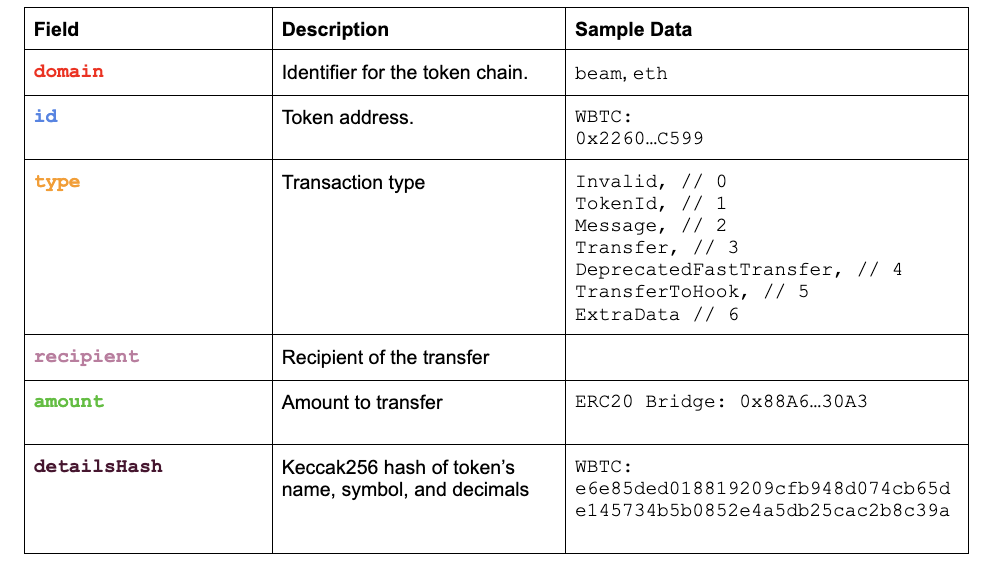

Table of BridgeMessage fields

Decoding the above payload illustrates how 0xb5c55f76f90cc528b2609109ca14d8d84593590e was able to steal 100 WBTC by submitting a specially crafted payload to bypass Nomad’s message checks.

In order to better understand the root cause of the exploit we developed a PoC to demonstrate it draining the entire token’s balance on the bridge in just a few transactions:

In order to better understand the root cause of the exploit we developed a PoC to demonstrate it draining the entire token’s balance on the bridge in just a few transactions

While writing a PoC we found it curious that attackers chose to extract funds in smaller increments when they could have drained the whole amount in a single transaction. This is likely due to the attackers not crafting bridge messages from scratch, but instead replaying existing transactions with patched receiving addresses.

On-Chain Analysis

Over $186M in ERC-20 tokens were stolen from the Nomad Bridge between August 1, 2022 at 21:32 UTC and August 2, 2022 at 05:49 UTC. The highest volume in stolen tokens were primarily USDC, followed by WETH, WBTC, and CQT. Within the first hour of the exploit, only WBTC and WETH were stolen, then followed by several other ERC-20s.

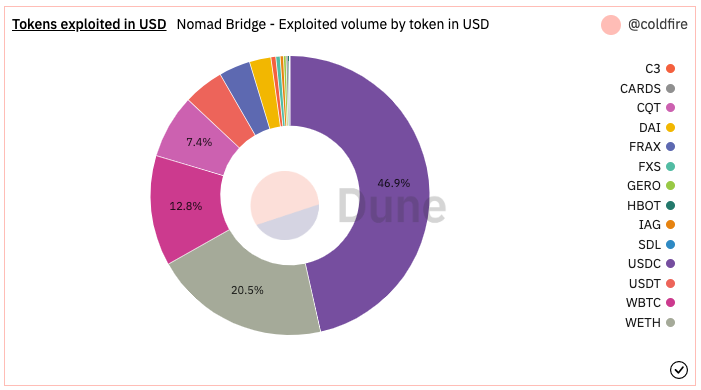

Nomad Bridge - Exploited volume by token in USD

Source: Dune Dashboard

In analyzing the blockchain data, we see that there were various addresses piggybacking off of the original exploiters and using almost identical input data with modified recipient addresses in order to siphon off the same token for the same amount. Once the WBTC contract was mostly drained, the attackers then went on to drain the WETH contract, and so on.

Further analyzing the first attackers in block 15259101, we find that the initial two attacker addresses leveraged a helper contract to obfuscate the exact exploit. Unfortunately, within that same block, several indexes down another exploiter address seem to have struggled interacting with the helper contract and decided to bypass it — and publicly expose the exploit input data in the process. Other addresses in the same and latter blocks then followed suit and used almost identical payloads to conduct the exploit.

Following the initial exploitation, and due to the ease of triggering the exploit, hundreds of copycats joined a massive exploitation of a single contract. While analyzing the payloads of various future attackers, we found that there was not only the reuse of the same tokens being bridged over and the same amounts, but also that funds were consistently being “bridged” from Moonbeam just like the original exploit.

The attack happened in three stages:the vulnerability testing a day prior to the attack, the initial exploit targeting WBTC stored on the bridge, and the copycat stage involving hundreds of unique addresses. Let’s dive into each of these including partial return of stolen assets.

Vulnerability Testing

Throughout July 31, 2022, bitliq[.]eth was found to trigger the vulnerability using small amounts of WBTC and other tokens. For example, on Jul-31–2022 11:19:39 AM +UTC he sent a transaction to the process() method on Ethereum blockchain with the following payload:

0x617661780000000000000000000000005e5ea959686 c73ed32c1bc71892f7f317d13a2670000003900657468 00000000000000000000000088a69b4e698a4b090df6c f5bd7b2d47325ad30a361766178000000000000000000 00000050b7545627a5162f82a992c33b87adc75187b21 803000000000000000000000000a8c83b1b30291a3a1a 118058b5445cc83041cd9d00000000000000000000000 0000000000000000000000000000000000000f6088a36 a47f8e81af64c44b079c42742190bbb402efb94e91c95 15388af4c0669eb

The payload can be decoded as follows:

  • Originating chain: “avax”

  • Destination chain: “eth”

  • Recipient: a8c83b1b30291a3a1a118058b5445cc83041cd9d (bitliq[.]eth)

  • Token Address: 0x50b7545627a5162F82A992c33b87aDc75187B218 (WBTC.e on Avalanche)

  • Amount: 0.00062984 BTC

This corresponds to 0.00062984 BTC transaction sent to the bridge on the Avalanche chain.

The payload was sent using the process() method as opposed to the more common proveAndProcess() and was not present in the messages[] map prior to execution in block 15249928 :

$ cast call 0x5d94309e5a0090b165fa4181519701637b6daeba "messages(bytes32)" "bc0f99a3ac1593c73dbbfe9e8dd29c749d8e1791cbe7f3e13d9ffd3ddea57284" --rpc-url $MAINNET_RPC_URL --block 15249928

0x0000000000000000000000000000000000000000000000000000000000000000

The transaction succeeded even without providing necessary proof by triggering the vulnerability in the acceptableRoot() method by supplying it with a 0x0 root hash value as illustrated in the debugger below:

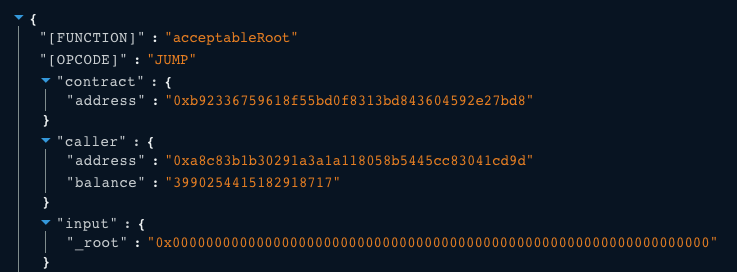

Tenderly Debugger

Source: Tenderly Debugger

Messages not present in the messages[] storage can be validated using the proveAndProcess() method; however, since the address called process() directly they have triggered the vulnerability.

Interestingly enough, it seems that bitliq[.]eth was also likely testing the ERC-20 bridge contract an hour prior to the exploit and bridged over 0.01 WBTC over to Moonbeam. [Tx]

Initial Exploitation

Active exploitation started on August 1, 2022 all within the same block 15259101 and resulted in combined theft of 400 BTC.

Transaction 1:

  • From: 0x56d…c4e3

  • Tx Hash: 0x6149…8f17

  • Stole 100 WBTC and exchanged them for WETH on Uniswap. Utilized helper contracts: 0xf57113d8f6ff35747737f026fe0b37d4d7f42777

  • Transaction was submitted privately using flashbots.

Transaction 2:

  • From: 0x847e…4148

  • Tx Hash: 0x4016…383a9

  • Stole 100 WBTC and exchanged them for WETH on Uniswap. Utilized helper contracts: 0x000000000000660def84e69995117c0176ba446e

  • Transaction was submitted privately using flashbots.

Transaction 3:

  • From: 0xb5c5…590e

  • Tx Hash: 0xb1fe…ae28

  • Stole 100 WBTC by directly calling the vulnerable contract.

  • Transaction was submitted publicly to mempool.

Transaction 4:

  • From: bitliq[.]eth

  • Tx Hash: 0xa5fe…5460

  • Stole 100 WBTC by directly calling the vulnerable contract.

  • Transaction was submitted publicly to mempool.

All four transactions used identical exploit payloads with the exception of a recipient address as described in the Vulnerability section above:

0x6265616d000000000000000000000000d3dfd3ede74 e0dcebc1aa685e151332857efce2d000013d600657468 00000000000000000000000088a69b4e698a4b090df6c f5bd7b2d47325ad30a300657468000000000000000000 0000002260fac5e5542a773aa44fbcfedf7c193bc2c59 903000000000000000000000000f57113d8f6ff357477 37f026fe0b37d4d7f4277700000000000000000000000 000000000000000000000000000000002540be400e6e8 5ded018819209cfb948d074cb65de145734b5b0852e4a 5db25cac2b8c39a

Some observations on the above:

  • The first three addresses were funded by Tornado Cash and have been actively transacting with each other which indicates a single actor group.

  • Unlike the first two exploit transactions, 0xb5c5…590e and bitliq[.]eth sent the exploit payload directly to the contract and without the use of flashbots to hide it from public mempool.

  • bitliq[.]eth replayed an earlier exploit transaction in the same block 15259101 as 0xb5c5…590e indicating either prior knowledge of the exploit or learning about 0xb1fe…ae28 from the mempool.

  • All four transactions used identical payloads, each stealing 100 WBTC at a time.

Copycats

In total, 88% of addresses conducting the exploits were identified as copycats and together they stole about $88M in tokens from the bridge.

The majority of copycats used a variation of the original exploit by simply modifying targeted tokens, amounts, and recipient addresses. We can classify unique payloads by grouping them based on contracts they call and unique method 4bytes invoked as illustrated below:

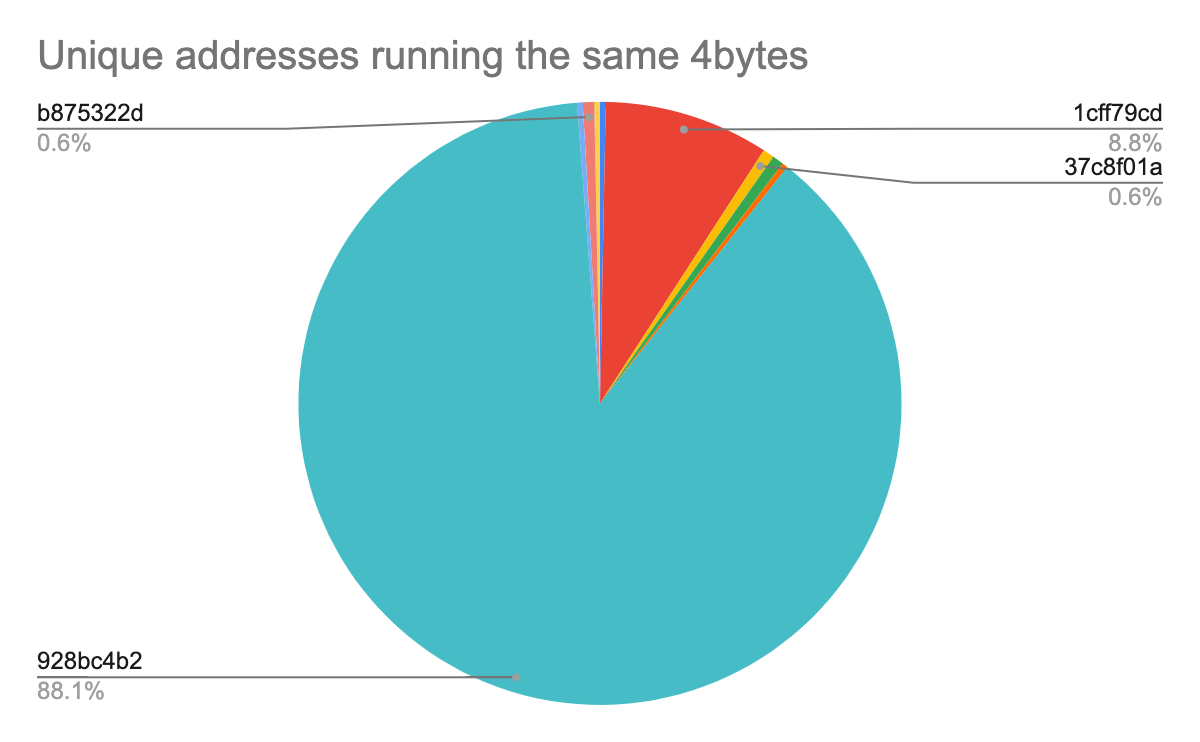

Unique addresses running the same 4bytes

Based on our analysis, more than 88% of unique addresses called the vulnerable contract directly using the 928bc4b2 function identifier which corresponds to the process(bytes) method used in the original exploit. The remainder perform the same call using intermediary contracts such as 1cff79cd which is the execute(address,bytes) method, batching multiple process() transactions together, and other minor variations.

Following the initial compromise, the original exploiters had to compete against hundreds of copycats:

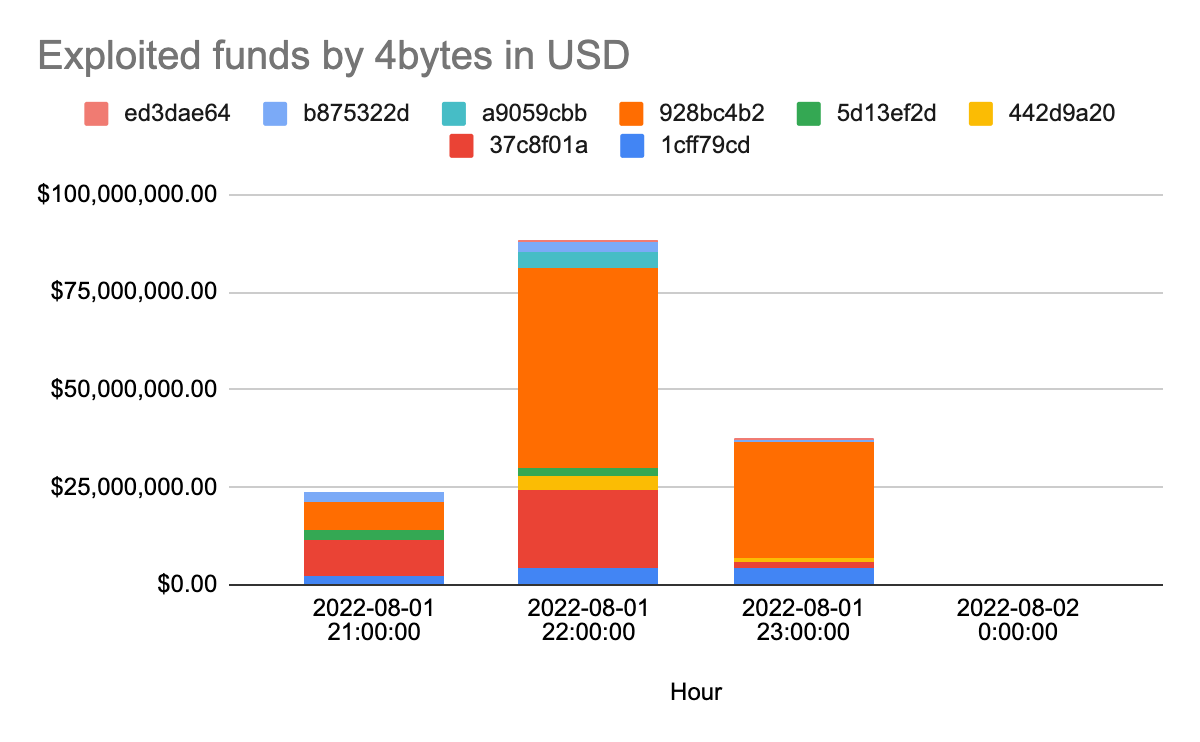

Exploited funds by 4bytes in USD

While the majority of valuable tokens were claimed by just two of the original exploiters’ addresses, hundreds of others were able to claim part of bridge’s holdings:

Top exploit addresses by tokens taken in USD

Below is a chart showing the tokens stolen over time in USD. It becomes apparent that the exploiters were going token by token as they were draining the bridge.

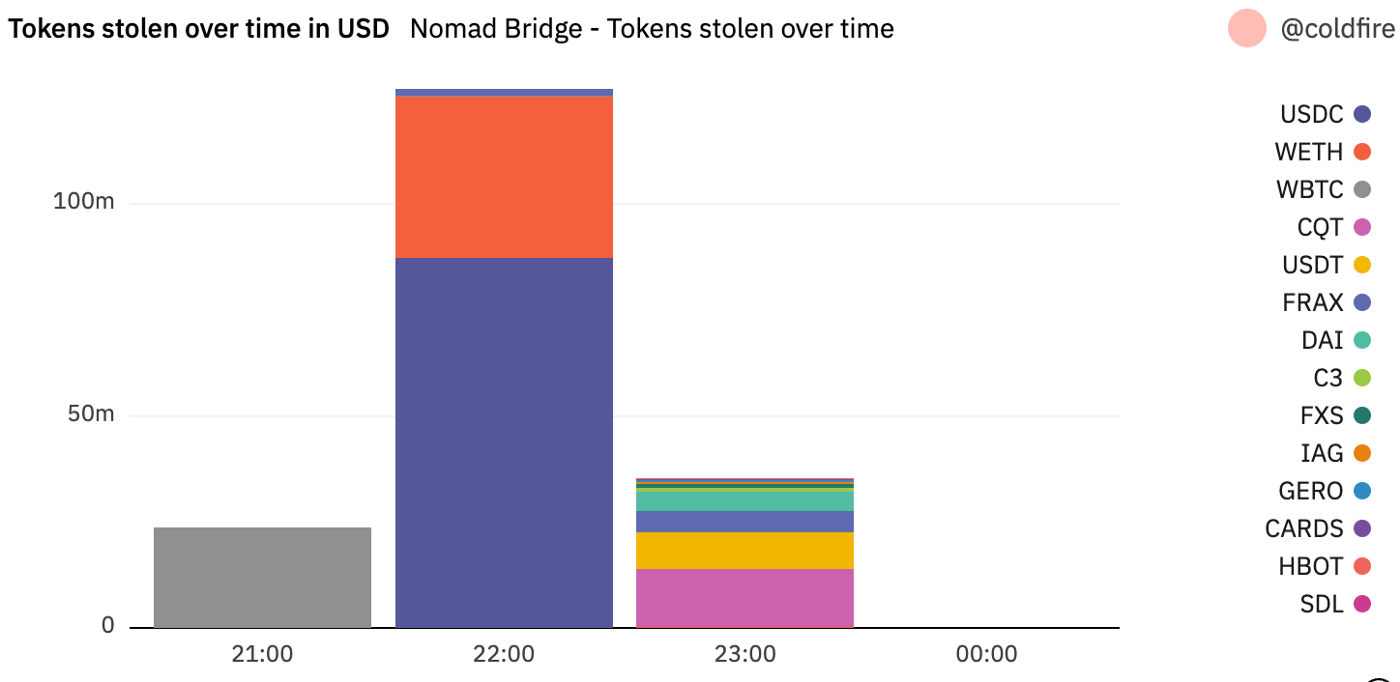

Tokens stolen over time in USD

The Great Return

As of August 9, 17% stolen from the Nomad Bridge contract has been returned — including partial returns. The majority of the returns took place in the hours following Nomad Bridge’s request to send funds to the recovery address on August 3, 2022. [Tweet, Tx]

Below is a breakdown of the funds returned, which includes ETH and various other tokens, some of which were never even on the bridge:

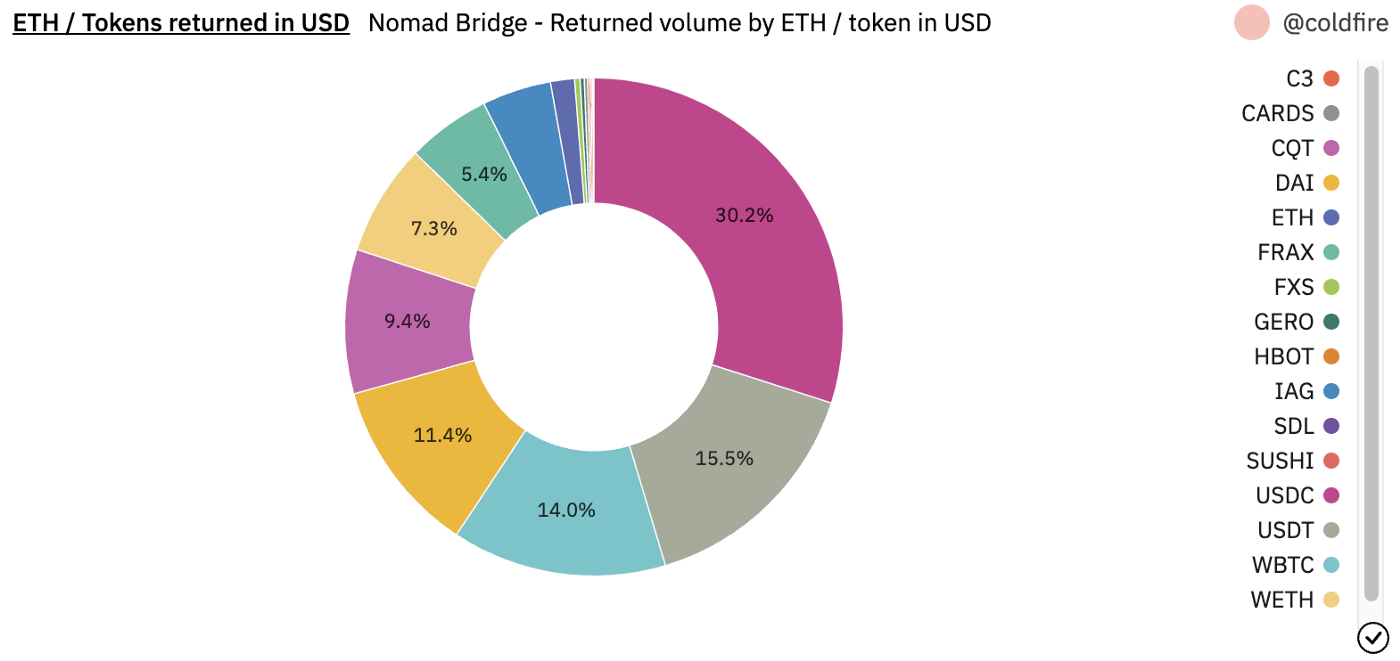

ETH/Tokens returned in USD

Funds continue to be sent back to the bridge’s recovery address, albeit more slowly in the recent days than when the address was initially posted:

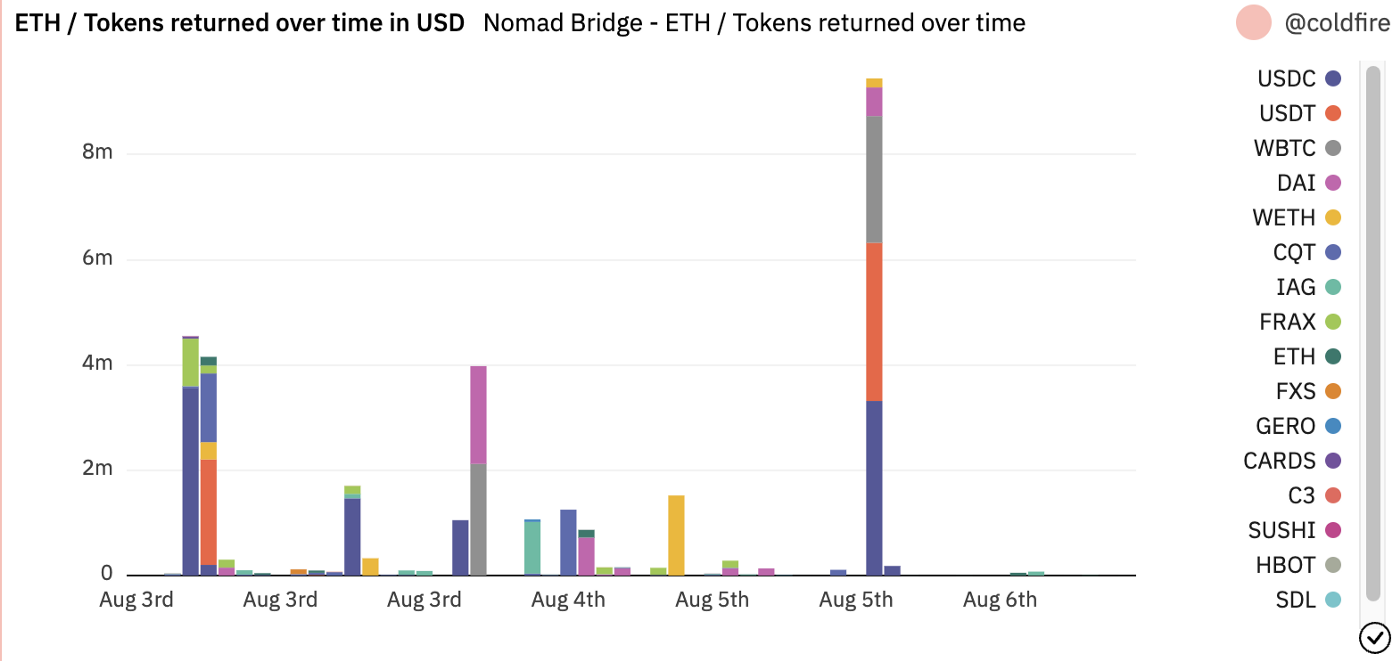

ETH/Tokens returned over time in USD

As of August 9, The majority of returned funds appear to be in USDC, followed by USDT, WBTC, DAI, CQT, and WETH. This is notably different from the breakdown of the tokens exploited. The reason being that the initial original exploiters primarily drained the bridge of WBTC and WETH. Unlike later stage exploiters, these exploiters moved funds around with no intent to return them.

Interestingly, one of the original exploiters, bitliq[.]eth, has returned only 100 ETH to the bridge contract, but has begun cashing out the rest of their proceeds through renBTC and burning it in exchange for BTC.

Categorizing the “exploiters”

When assessing the Nomad Bridge exploiters, the attackers were categorized into the following buckets:

  • Black hats: Those that don’t return funds and continue moving them onwards.

  • White hats: Those that fully send funds back to the recovery addresses

  • Please note that while we are using the term white hat for explanatory purposes here, the initial taking of the funds was not authorized and is not an activity we would endorse.

  • Grey hats: Those that partially send funds back to the recovery addresses.

  • Unknown unknowns: Those that have yet to move funds.

Approximately 34% of funds continue to sit untouched. We suspect these are either attackers waiting out the heat or shrewd degens holding out for a better bounty from Nomad. However, the largest volume of funds has moved onwards. As of August 9, we estimate that ~49% has moved onwards.

To stay up to date with the latest in terms of the funds returned, check out this dashboard.

Delving Into the Blackhats

Of those funds that have moved onwards, we have identified several large rings of addresses that all commingle funds. In particular, one cluster of addresses seems to have amassed over $62M in volume. Interestingly, one address within this cluster was the first address to have conducted the exploit [tx hash].

To date, we primarily see these rings following one of the below patterns:

  • MEV bot activity

  • Commingle and hold on to wait out the heat

  • Swapping funds and eventually returning a partial amount of funds to the recovery address

  • Swapping funds and investing DeFi projects or cashing out at various CEXs

  • Moving funds through Tornado Cash

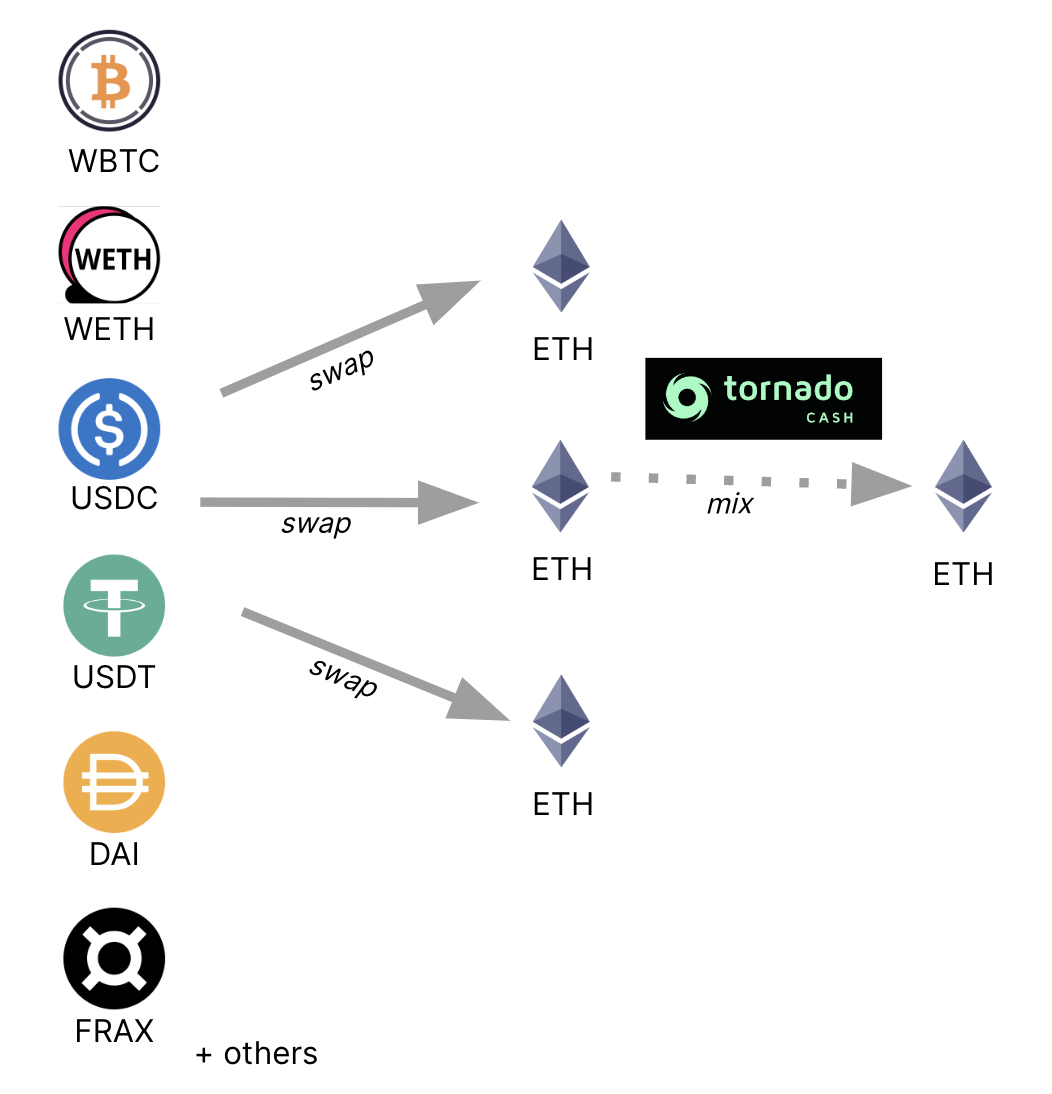

Below is an example of how some addresses have begun moving funds through Tornado Cash, which as of August 8, 2022, is a sanctioned entity.

an example of how some addresses have begun moving funds through Tornado Cash

Beware of Scams:

Several white hats have already returned over 10% of funds to the bridge contract. However, this wasn’t without hiccups.

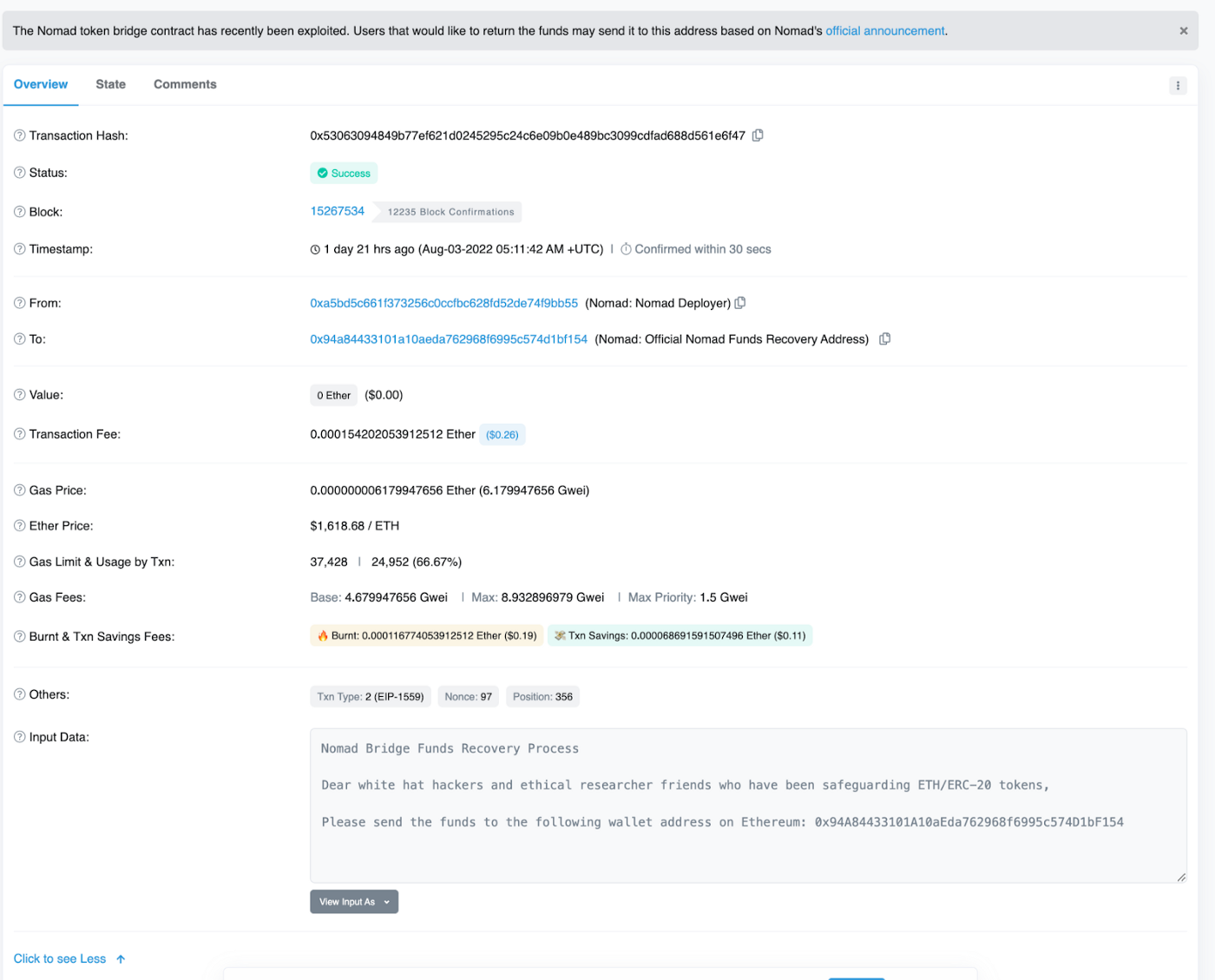

Originally, the Nomad team posted on both Twitter and on the blockchain the Ethereum address to send any exploited funds to

Nomad team posted on both Twitter and on the blockchain the Ethereum address to send any exploited funds to

However, scammers cleverly followed suit and set up various fraudulent ENS domains to pose as the Nomad team and requested they have funds sent to vanity addresses with the same initial characters as the legitimate recovery address.

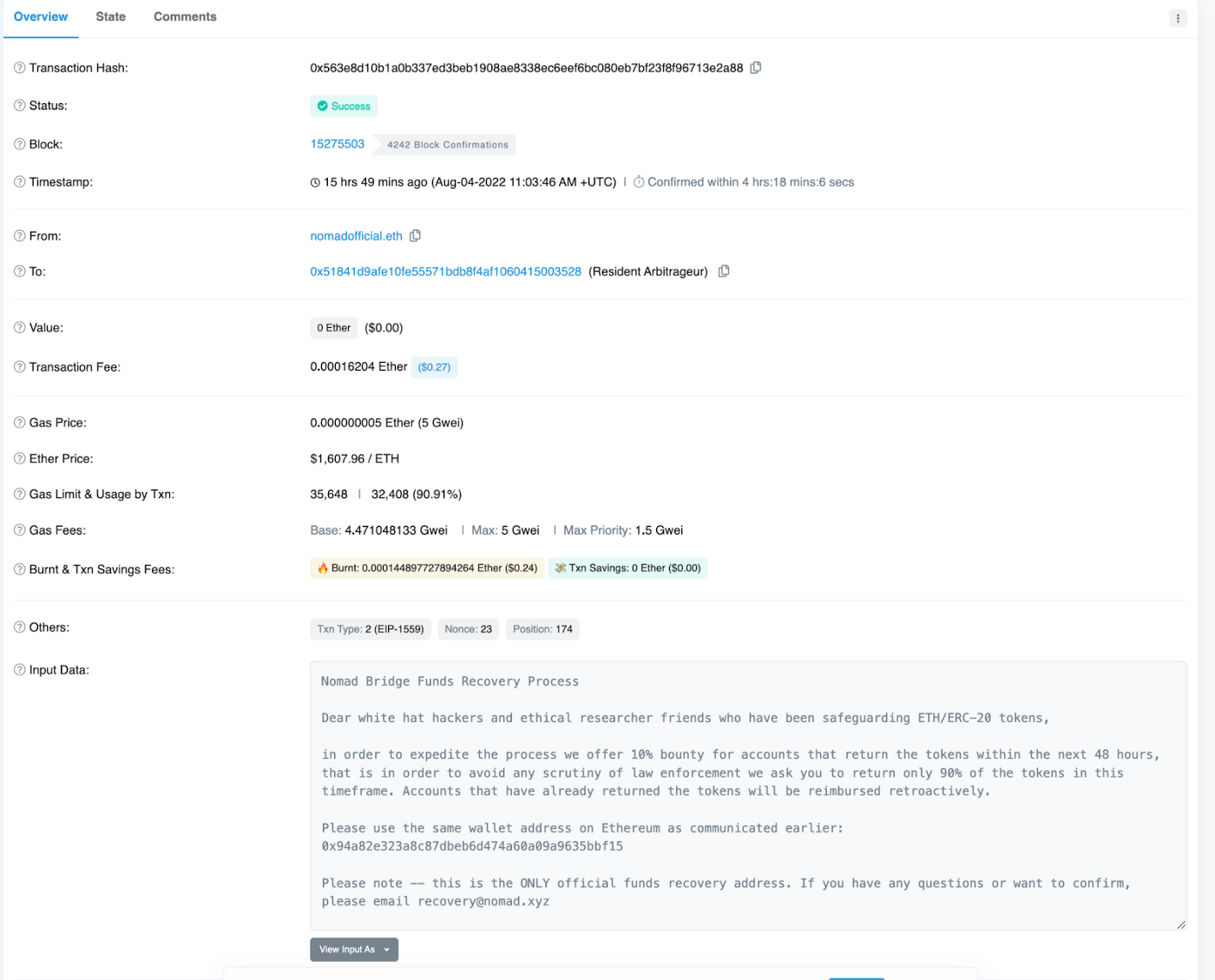

For example, below is a message sent by one of the scammers. Note the fraudulent recovery address, ENS domain, and also the 10% bounty off. Nomad has since offered that white hats claim 10% of exploited proceeds. [Tx]

Message sent by scammers

Protecting Yourself

While most contracts are audited extensively by various blockchain auditors, contracts may still contain yet to be discovered vulnerabilities. While you may want to provide liquidity to a particular protocol or bridge over funds, here are some tips to keep in mind:

  • When supplying liquidity, don’t keep all of your funds on one protocol or stored in the bridge.

  • Make sure to regularly review and revoke any contract approvals you don’t actively need.

  • Stay up to date with security intelligence feeds to track protocols you’ve invested in.

Coinbase is committed to improving our security and the wider industry’s security, as well as protecting our users. We believe that exploits like these can be mitigated and ultimately prevented. Besides making codebases open source for the public to review, we recommend frequent protocol audits, implement bug bounty programs, and actively work with security researchers. Although this exploit was a difficult learning experience, we believe that understanding how the exploit occurred can only help further mature our young industry.

* * *

References

Indicators

Initial exploiters:

Ethereum: 0x56d8b635a7c88fd1104d23d632af40c1c3aac4e3

Ethereum: 0xf57113d8f6ff35747737f026fe0b37d4d7f42777

Ethereum: 0xb88189cd5168c4676bd93e9768497155956f8445

Ethereum: 0x847e74d8cd0d4bc2716a6382736ae2870db94148

Ethereum: 0x000000000000660def84e69995117c0176ba446e

Ethereum: 0xb5c55f76f90cc528b2609109ca14d8d84593590e

Ethereum: 0xa8c83b1b30291a3a1a118058b5445cc83041cd9d

See Dune Dashboard for a complete listing of exploiter addresses, transactions, and live status of stolen assets.
